Display & Image
🎥 Display Technology: DLP®
🖥️ Resolution: WXGA (1280 × 800)
💡 Brightness: 4,000 lumens
⚫ Contrast Ratio: 300,000:1
🌗 Dynamic Contrast Ratio: 2,000,000:1
📐 Native Aspect Ratio: 16:10
📏 Aspect Ratio – Compatible: 4:3, 16:9
↕️ Keystone Correction (Vertical): ±40°
🎨 Displayable Colours: 1,073.4 million
📡 Horizontal Scan Rate: 15 ~ 140 KHz
🔄 Vertical Scan Rate: 24 ~ 120 Hz
🟦 Uniformity: 75%
📺 Screen Size: 0.51m ~ 7.62m (20" ~ 300") diagonal
Light Source
🔆 Light Source Type: Laser
⏳ Laser Lifespan: Up to 30,000 hours
Optics & Projection
📏 Throw Ratio: 1.54:1 ~ 1.72:1
📍 Projection Distance: 1m – 10m
🔍 Zoom: 1.1×
🛠️ Zoom Type: Manual
📐 Focal Length: 21.85 ~ 24.00 mm
📊 Native Offset: 112%
Connectivity

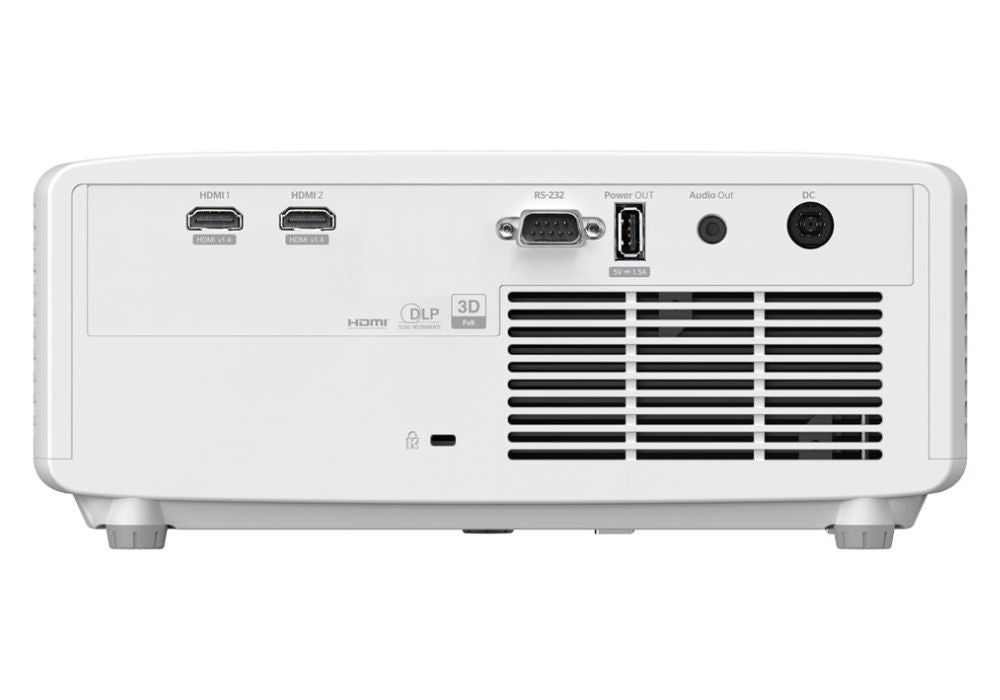

🔌 Inputs:
• 2 × HDMI 1.4a (3D support)
🔊 Outputs:
• 1 × Audio 3.5mm
• 1 × USB-A power (1.5A)
🖥️ Control:
• 1 × RS232
Audio
🔊 Built-in Speaker: 1 × 15W
Compatibility
💻 PC Compatibility: FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
📼 2D Compatibility:
NTSC, PAL, SECAM, 480i/p, 576i/p, 720p, 1080i/p, 1080p
🎬 3D Support: Full 3D
General
🔊 Noise Level (Min): 27 dB
🔊 Noise Level (Max): 34 dB
🛡️ Security: Security bar, Kensington lock, password protection
🌪️ IP Rating: IP6X dust resistant
🌍 OSD Languages: 25 languages supported
⏱️ 24/7 Operation: Yes
🔄 360° Projection: Yes
🌡️ Operating Conditions: 0°C – 40°C, Max humidity 80%, Max altitude 3000m
🎮 Remote Control: Card-style remote
Power
⚡ Power Supply: External power supply, 100 – 240V, 50–60Hz
💤 Standby Power Consumption: <0.5W
🔋 Power Consumption (Min): 88W
🔥 Power Consumption (Max): 139W
Physical Specifications
📏 Dimensions (W × D × H): 274 × 216 × 114 mm
⚖️ Net Weight: 3 kg
📦 Gross Weight: 4.2 kg
In the Box
📦 Included:
• AC power cord
• Remote control
• 1 × CR2025 battery
• Basic user manual
📡 Optional Wireless Module: UHDCast Pro
