Display & Image
๐ฅ Projection Technology: RGB Liquid Crystal Shutter (3LCD)
๐ฅ๏ธ Resolution: 4K UHD (3840 ร 2160)
๐ก Colour Brightness: 3,300 lumens (IDMS Rated)
๐ก White Brightness: 3,300 lumens (ISO Rated)
โซ Dynamic Contrast Ratio: 5,000,000:1
โซ Native Contrast Ratio: 5,000:1
๐ Aspect Ratio: 16:9
๐งฎ On-Screen Pixel Count: 8,294,400 pixels
๐จ Colour Reproduction: Up to 1.07 billion colours
๐ HDR Support: HDR10, HDR10+, HLG
๐๏ธ Colour Processing: 10-bit
Light Source
๐ Light Source: Laser
โณ Laser Lifespan: Up to 20,000 hours (High / Medium / Eco modes)
Optics & Projection
๐ Throw Ratio: 1.35 โ 2.84 : 1
๐ Zoom: Motorised 2.1ร zoom
๐ฏ Lens Shift: Motorised (Vertical ยฑ96.3%, Horizontal ยฑ47.1%)
๐พ Lens Memory: 10 positions
๐บ Screen Size: 50" โ 300"
๐ Projection Distance: 3 m โ 6.3 m (100" screen)
๐ Focus: Motorised
๐ Focal Length: 22.5 โ 46.7 mm
๐ข Lens F-Number: F2 โ F3
๐ Mechanical Shutter: Yes
โ๏ธ Keystone Correction: ยฑ30ยฐ horizontal / ยฑ30ยฐ vertical
Image Processing
๐ง Resolution Enhancement: Full HD enhancement
๐ฌ Frame Interpolation: Yes
๐ Dynamic Tone Mapping: Supported
๐จ Colour Modes: Dynamic, Natural, Cinema, Vivid
๐ก Vertical Refresh Rate: 384 โ 480 Hz

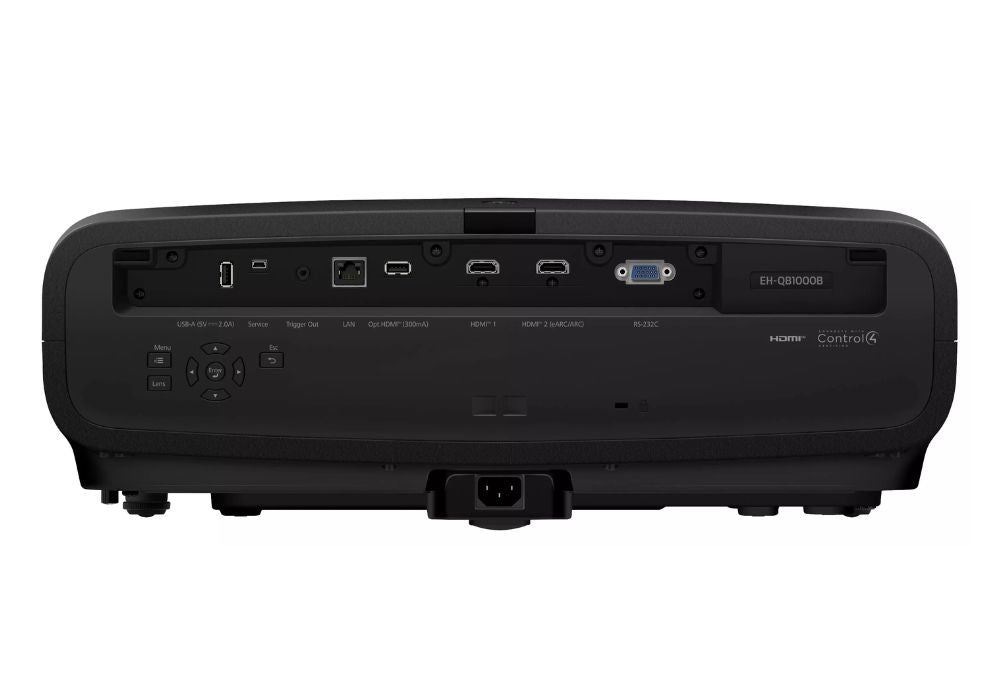

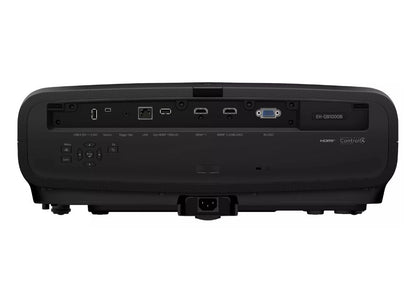

Connectivity
๐ HDMI Ports: 2 ร HDMI (HDCP 2.3, HDMI ARC)
๐ฅ๏ธ USB Ports: 2 ร USB 2.0, 1 ร USB Mini-B
๐ง Control Ports: RS-232C, Trigger Out
๐ Network Protocols: ESC/VP.net, PJLink
Smart Control
๐ Automation Compatibility: Crestron, AMX Device Discovery, Control4
๐ฅ๏ธ Projector Control: Network and IP control supported
Advanced Features
๐ Security: Kensington Lock
โ๏ธ ISF Certification: Yes
๐งฉ Image Tools: Quick Corner, Super Resolution
โก Power Features: Direct power on/off
๐ฎ Applications: 4K gaming, streaming, sports, home cinema
Power
โก Power Consumption:
โข 285W (Normal)
โข 158W (Eco)
โข 328W (Peak)
โข 200W (Eco Peak)
๐ค Standby Power: 0.4W
๐ฅ Heat Dissipation: 1,115.2 BTU/hour (max)
๐ Power Supply: AC 100 โ 240V, 50/60Hz
General
๐ Noise Level: 32 dB (Normal) / 22 dB (Eco)
๐ก๏ธ Operating Temperature: 5ยฐC โ 35ยฐC
๐ง Operating Humidity: 20% โ 80%
Physical Specifications
๐ Dimensions (W ร D ร H): 520 ร 447 ร 193 mm
โ๏ธ Weight: 12.8 kg
Installation & Accessories
๐ ๏ธ Mounting Options: Ceiling or desktop installation
๐ฆ Optional Accessories: Air filter, ceiling mount, safety wire set, suspension adapter
Warranty
๐ก๏ธ Warranty: 60 months carry-in or 12,000 hours
